Sentinel Plus

PRODUCT DESCRIPTION

Our compact and accurate Cathodic Protection remote monitoring Sentinel series are designed to be used in any type of CP application. It may fit inside several types of test posts including steel test posts and by using GSM connection, all type of CP regular measurement data could be collected remotely. Measurement interval and parameters are easily set via internet on our in-house built server interface.

  • Rugged and durable with aluminium enclosure
  • Easy to fit inside 4” steel test post
  • AndroidTM application to first start up and data control on site
  • AC/DC Voltage and AC/DC Current Measurements from pipe, coupon and anode
  • Long battery life without any replacement (up to 5 years by weekly data collection.)

Areas of Use:

  • Regular Cathodic Protection Potential Survey
  • Pipe Polarized Potential Survey
  • Polarization Tests
  • AC / DC Interference Tests
  • Coupon Tests
  • Current Requirement Tests

DC / AC Voltmeter / Ammeter

  • Measurement Waveform : DC & AC
  • Voltage Measuring Range : ± 8 Volts DC, AC (RMS)
  • Current Measuring Range: ± 100mA DC, AC
  • Voltage Resolution : 1 mV DC/AC
  • Current Resolution: 0.1mA DC/AC
  • Accuracy : + / – %1
  • High Voltage Protection
  • 50Hz AC Filter

Remote Data Transfer via GSM

  • Device locations on web based interface
  • Data collection settings including data interval, parameters and alarms

AndroidTM Application via Bluetooth

  • Supports AndroidTM 4.4 to AndroidTM 9
  • Real Time Voltage Measurements and Graphs
  • Remote Monitoring Settings

Physical Properties

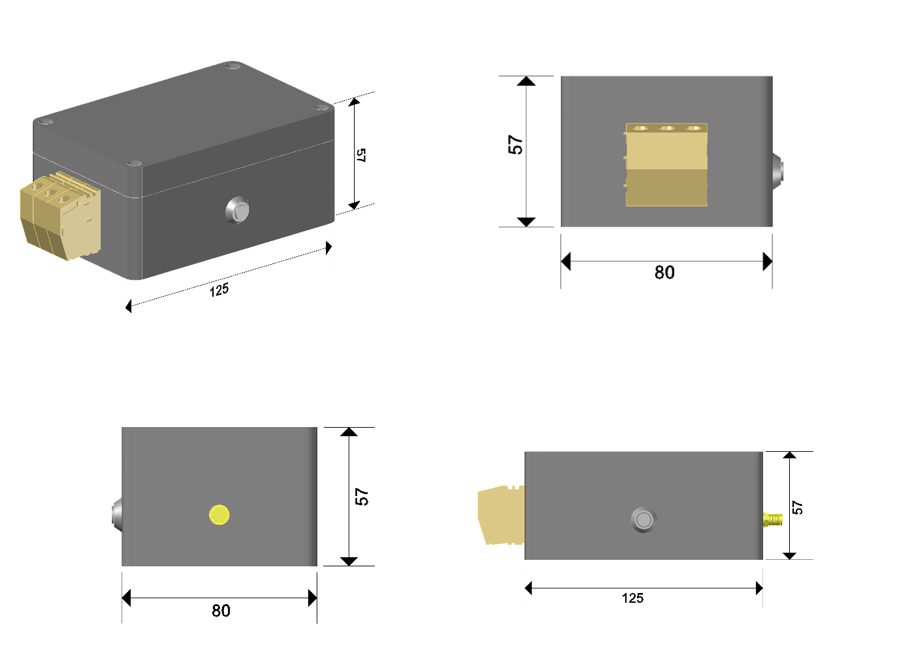

  • Dimensions – 125x80x57mm excluding terminals
